Trax ADV Väskpaket R1300GS 23-25

Adventure set

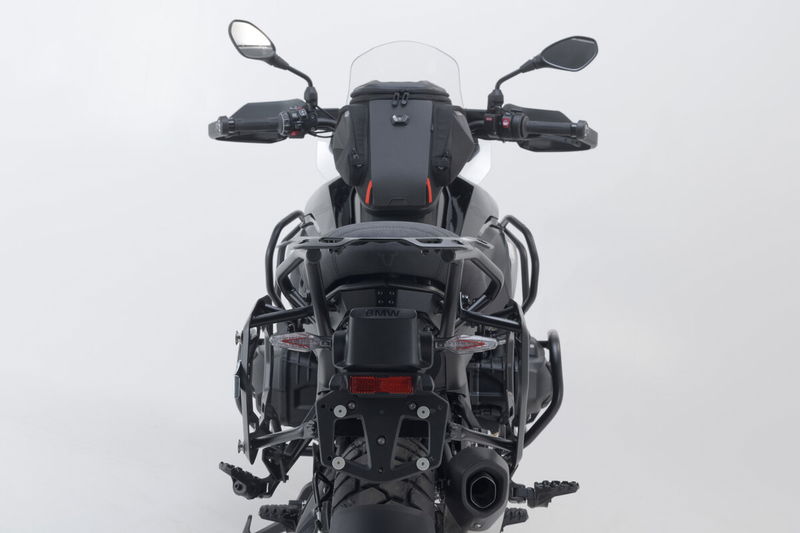

The Adventure set TRAX ADV for the BMW R 1300 GS includes PRO side carriers and the matching ADVENTURE-RACK. The side carrier and rack are fastened to the bike-specific attachment points and offer sturdy support for the black TRAX ADV aluminium cases.

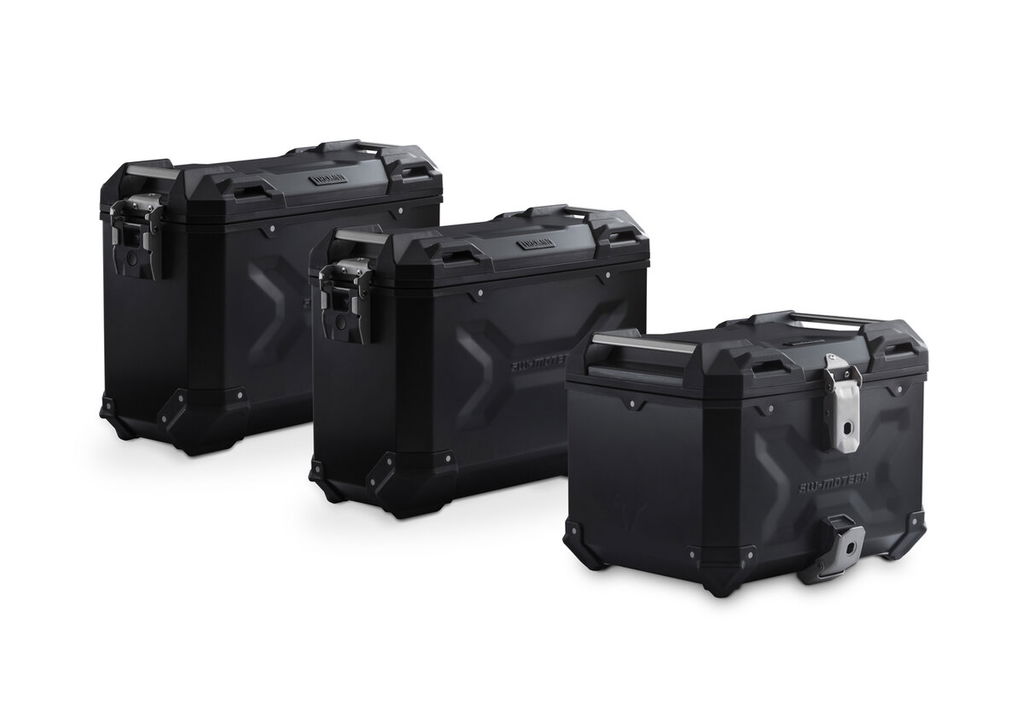

This set is the all-round, care-free pack for any tour. The water and dust-tight TRAX ADV premium aluminum case, two side cases and a top case offer your luggage the best protection. The bike-specific development of the detachable PRO side carrier and the ADVENTURE-RACK guarantee an optimal fit and secure grip for aluminium cases.

Our sturdy TRAX ADV aluminum cases convince with their stability, impermeability to water and dust, elegant optics, well-thought out features and a large selection of accessories. For even more storage, this adventure set contains two TRAX M/L expansion bags. These are fastened to the side cases, are water-tight and the contents can be especially quickly accessed.

• PRO Side carrier

  • Total width without carrier adapter kit: 455 mm
  • Extremely durable due to its optimized shape and 2.5 mm thick steel
  • Perfect fit, designed to fit close to the bike
  • Fully removable with newly developed, even more robust quick-release fasteners
  • Optional anti-theft protection available
  • For permanent mounting, quick-release fasteners can be replaced with standard parts (M8)
  • Numerous functional bores
  • Simple mounting on original mounting points
  • Powerful corrosion protection thanks to powder coating
  • Secure hold for TRAX, AERO and SysBags with adapter plate (SysBag 15, 30, WP L)

  • Details

  • Material: Steel
  • Surface: powder coated
  • Color: black
  • Total Weight: appr. 5,0 kg / appr. 11.1 lb
  • Width built onto motorcycle: 45,5 cm / 17.9 in

  • Note

  • Adapter kits are required for aluminum cases from SW-MOTECH and other manufacturers and also for AERO ABS side cases and SysBags with adapter plates (SysBag 15, 30, WP L).

• Adapter kit for PRO side carrier

  • Adapter kit for attaching a TRAX or NANUK side case to an SW-MOTECH PRO side carrier
  • Mounted on to the existing holes of the SW-MOTECH PRO side carrier
  • For left and right sides

  • Details

  • Color: silver
  • Total Weight: appr. 0,3 kg / appr. 0.7 lb

TRAX ADV L Aluminium case

• Model for the left side of the motorcycle
• Protection against oxidation and abrasion thanks to black powder coating, easy to clean surface
• Sturdy and watertight side case made from aluminium
• Large chamfer on sides for plenty of ground clearance for cornering, additional protection from glass fiber reinforced plastic corner caps
• Robot-guided welding and self-piercing riveting prevent dampness from getting in
• Even when loaded, completely removable lid with quick-release fastener
• 4 large tie-downs integrated into the lid design (e. g. for a tent or accessory bag)
• High stability thanks to the embossed patterns, welded edges and pre-installed retaining rail
• Hinges made from stainless steel, handles made from anodized aluminum
• Lid limiters provide additional stability when using extra luggage on the lid
• Exchangeable cover gasket
• The membrane makes it easy to open the lid, even in case of extreme pressure and temperature fluctuations
• Quick mounting on to all PRO and EVO luggage carriers (adapters sold separately)
• Adapter kits also available for mounting on to girders from other manufacturers such as Givi and Hepco & Becker
• A lock set with 6 identical locks is available as an option and is not included in delivery

• Details

• Material: Aluminum
• Material strength: 0,15 cm / 0.06 in
• Surface: powder coated
• Color: black
• Size: 49,0 x 28,0 x 37,0 cm / 19.3 x 11.0 x 14.6 in
• Total Weight: appr. 5,4 kg / appr. 11.9 lb
• Total Volume: 45,0 l

TRAX ADV L Aluminium case

• Model for the right side of the motorcycle
• Protection against oxidation and abrasion thanks to black powder coating, easy to clean surface
• Sturdy and watertight side case made from aluminium
• Large chamfer on sides for plenty of ground clearance for cornering, additional protection from glass fiber reinforced plastic corner caps
• Robot-guided welding and self-piercing riveting prevent dampness from getting in
• Even when loaded, completely removable lid with quick-release fastener
• 4 large tie-downs integrated into the lid design (e. g. for a tent or accessory bag)
• High stability thanks to the embossed patterns, welded edges and pre-installed retaining rail
• Hinges made from stainless steel, handles made from anodized aluminum
• Lid limiters provide additional stability when using extra luggage on the lid
• Exchangeable cover gasket
• The membrane makes it easy to open the lid, even in case of extreme pressure and temperature fluctuations
• Quick mounting on to all PRO and EVO luggage carriers (adapters sold separately)
• Adapter kits also available for mounting on to girders from other manufacturers such as Givi and Hepco & Becker
• A lock set with 6 identical locks is available as an option and is not included in delivery

• Details

• Material: Aluminum
• Material strength: 0,15 cm / 0.06 in
• Surface: powder coated
• Color: black
• Size: 49,0 x 28,0 x 37,0 cm / 19.3 x 11.0 x 14.6 in
• Total Weight: appr. 5,4 kg / appr. 11.9 lb
• Total Volume: 45,0 l

• TRAX lock set with PRO anti-theft protection

  • 9 matching locks
  • With anti-theft protection for PRO side carrier
  • Compatible with side cases and top cases from the TRAX ADV and TRAX ION series
  • One key for all locks

  • Details

  • Color: black
  • Total Weight: appr. 0,5 kg / appr. 1.0 lb

• ADVENTURE-RACK

  • Extremely robust rack for long tours and off-road rides
  • Exclusive manufacturing processes and its optimized shape lend an extra dose of stability to the ADVENTURE-RACK
  • Its extreme durability during vibrations, impacts and high weight was tested in the lab and off-road under harshest conditions
  • Multiple functional bores: for TRAX top cases. SysBag with adapter plate are available separately with the appropriate adapter kit
  • Adapter kits for attaching top cases by other manufacturers (Givi Monokey and Monolock, Krauser, Shad I und II) also available
  • Easy rigging of luggage on numerous, large lashing eyes, threading of 25 mm fasteners possible
  • Especially large contact surface (Width: 32.9 cm at the front, 22.5 cm at the back, Length: 30.3 cm)
  • Easy installation on original attachment points with bike-specific attachment elements
  • Effective corrosion protection from black powder coating
  • Made of light but sturdy 4mm-thick aluminum alloy

  • Details

  • Material: Aluminum
  • Surface: powder coated
  • Color: black
  • Total Weight: appr. 4,6 kg / appr. 10.1 lb

Adapter kit for ADVENTURE-RACK

• Adapter kit for attaching a TRAX top case onto an ADVENTURE-RACK
• Compatible with TRAX ADV, TRAX ION and TRAX EVO top cases by SW-MOTECH
• Easy mounting: the adapter kit is screwed onto the rack

• Details

• Material: Polyamide / Stainless steel
• Color: black / silver
• Total Weight: appr. 0,2 kg / appr. 0.4 lb

TRAX ADV Top case

• Protection from corrosion and wear due to black powder coating
• Premium top case made from 1.5 mm-thick aluminum
• Hinged lid with lid limiter, stainless steel latch, sturdy carrying handles and integrated mounting points
• 100% water- and dustproof due to robotic welding and punch rivet technology
• Theft protection: Case lid and case can be locked when on the carrier
• High stability thanks to the visually appealing and functional embossed sheet metal
• Additional protection from corners made of glassfiber-reinforced polyamide
• Easy to clean surface
• A lock set with 2 identical locks is available as an option and included in delivery when purchasing a TRAX ADV top case system

• Details

• Material: Aluminum
• Material strength: 0,15 cm / 0.06 in
• Surface: powder coated
• Color: black
• Size: 41,0 x 34,0 x 33,0 cm / 16.1 x 13.4 x 13.0 in
• Total Weight: appr. 4,8 kg / appr. 10.6 lb
• Total Volume: 38,0 l

TRAX WP M/L accessory bag

• Waterproof accessory bag that can be lashed onto side cases
• For side cases from SW-MOTECH and other brands (such as BMW, for ex.)
• 15 litres of additional storage, padded
• Circumferential, waterproof zipper enables quick access to the entire contents
• Overlapping lid is secured using plastic clips
• Divider for custom organisation of the interior
• Made of robust, easy to clean material
• Sleek design with reflective details
• Sturdy carrying handle
• 8 D-rings offer flexible lashing options (spacing of the inner D-rings: approx. 24 cm, spacing of the outer D-rings: approx. 32 cm)

• Details

• Material: 500D Polyester
• Color: black
• Size: 45,0 x 15,0 x 22,0 cm / 17.7 x 5.9 x 8.7 in
• Total Weight: appr. 1,3 kg / appr. 2.9 lb
• Total Volume: 15,0 l
